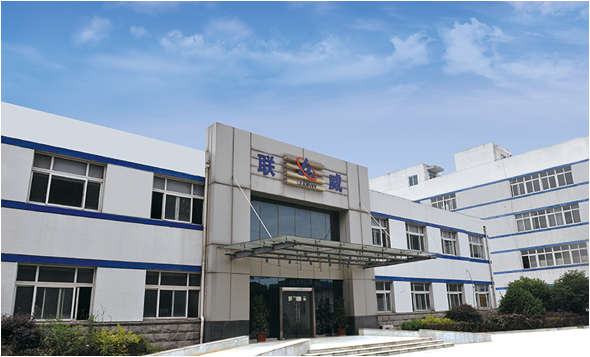

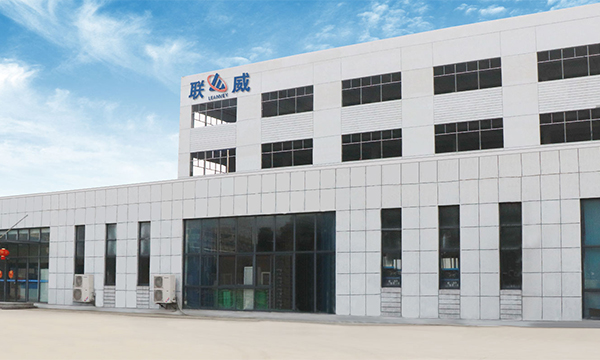

Changzhou Leanevey Automation Equipment Co., Ltd. is located in Changzhou National High-tech Industrial Zone, Jiangsu Province, Xinlong International Intelligence and Technology Creation Center; adjacent to Changzhou High-speed Railway North Station and International ...
- Company Profile
- Certificate of honor
- Cooperative brand
- Contact us
聯威產品展示
PRODUCT DISPLAY
-

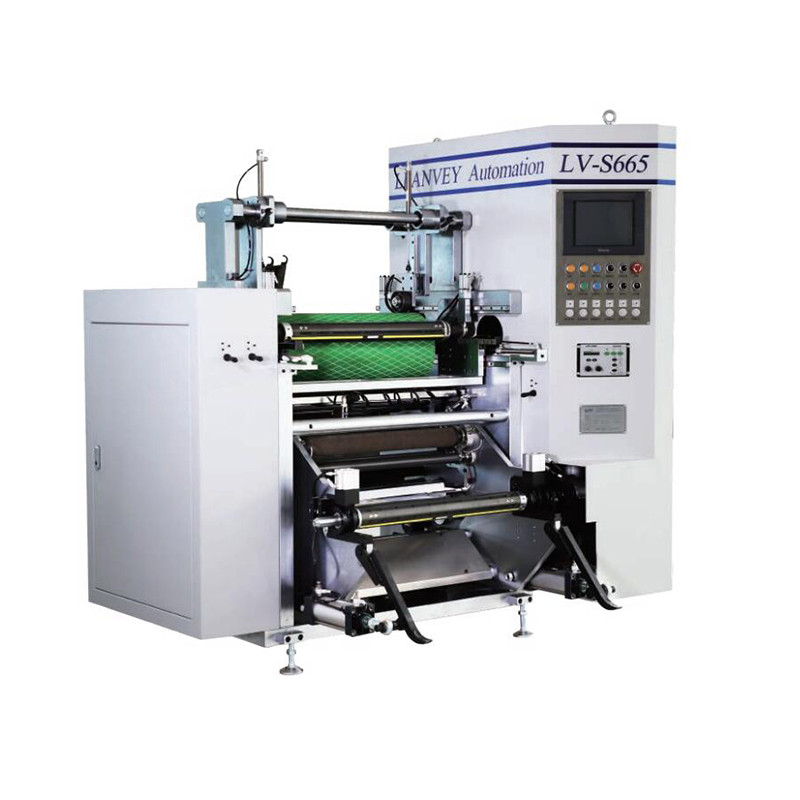

S系列 Automatic winding machine
設備特點:
5、收卷不停機橫向微調,極大縮短調整時間。 6、加固的設備側板和底座,最大程序減小振動。 1. Imported AC servo motors with high precision are used for main drive and winding drive, which have the functions of cushioning start, slow stop with fifixed length or diameter, and emergency stop. The main control functions are controlled by PLC plus 6 "color touch screen, which can arbitrarily adjust the winding speed, tension, tension taper and other main parameters to ensure the best winding effffect. 2. Rewinding, shearing force and winding are controlled by multi-stage tension. The imported AC servo motor is equipped with imported high-precision tension detection and automatic tension control system, which makes the fifilm tension more accurate and stable. 3. Imported high-precision CCD entanglement system, with an accuracy of<0.1mm. 4. The two-stage adjusting device of the cutter ensures the optimum cutting angle of the cutter blade and the accuracy of the size of the small coil and greatly shortens the adjusting time by fifine-tuning the cutter horizontally and vertically without stopping the machine. 5. Non-stop winding horizontal fifine-tuning, greatly shorten the adjustment time. 6. Strengthened equipment side program to reduce vibration.
-
HX系列 Automatic winding machine
設備特點:
性。 1. The whole machine is controlled by AC servo system. The winding tension and pressure are constant and controllable. The winding diameter of the core can reach 150 mm. 2. The machine is controlled by PLC and touch screen. It has the functions of capacity calculation, parameter storage and parameter reading to realize the humanized operation. 3. Material disc mechanism adopts double guide rods and precision screw rods to ensure the parallel movement of material disc and base surface; Material fifilm adopts double tightening combination mechanism to locate and tighten the positioning surface and move back after tightening, effffectively ensuring the stability of material end surface smoothness and staggered edge; 4. Metallized fifilm material axis unwinding has translation follow-up flflattening roller mechanism to effffectively prevent fifilm material wrinkling; material tray movement adopts double-column guidance to improve movement accuracy. 5. The outer needle coiling sleeve has anti-skid function, which avoids the powder produced by skidding friction with the mandrel and affffects the capacitance performance. 6. It has the function of secondary heat seal. The time and pressure of primary heat seal and secondary heat seal can be set separately, which is convenient for the later process. 7. Digital control mode can be selected to improve accuracy and convenience when adjusting the scope of specifications.
-

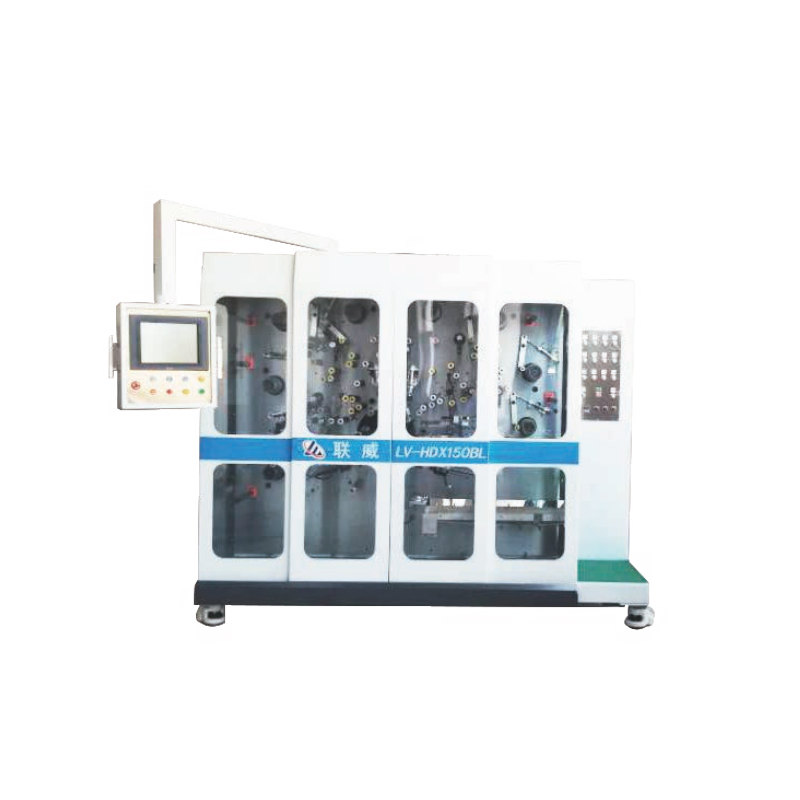

HDX系列 Automatic winding machine
設備特點:
1.Synchronized multi-functional composite winding of optical film,metallized fifilm and foil capacitor. 2. The needle-type cutting mechanism is used to realize the synchronous winding of aluminum foil, metal fifilm and optical fifilm, and the function of folding aluminum foil can be matched. 3. Using Siemens PLC and touch screen control, with capacity calculation, parameter storage, parameter reading function, to achieve humanized operation. 4. The whole machine is controlled by Panasonic AC servo system, and the winding tension is controlled by Japanese precision low friction cylinder, which can improve the accuracy and compensate the tension when the speed is lowered. 5. Precision screw rod is used to effffectively reduce the adjustment clearance, increase the adjustable locking device, adjustable clearance and prevent the displacement of the staggered edge. 6. The frame of the machine is of integral structure, which can change the lack of strength of multiple assemblies, effffectively improve the accuracy and durability, and greatly reduce the mechanical vibration. 7. It has the function of secondary heat seal. The time and pressure of primary heat seal and secondary heat seal can be set separately,which is convenient for the later process.
-
HV系列 Automatic winding machine
設備特點:
7、采用水平式勾膜方式,避免勾膜不良現象。 1. This machine can effffectively solve the product precision and production effiffifficiency of hexagonal core capacitor in the range of 14-30 mm fifilm width. 2. The machine is controlled by PLC and touch screen. It has the functions of capacity calculation, parameter storage and parameter reading to realize the humanized operation. 3. The whole machine is controlled by Panasonic AC servo system, and the winding tension is controlled by Japanese precision low friction cylinder, which can improve the accuracy and compensate the tension when the speed is lowered. 4. It has the function of secondary heat seal. The time and pressure of primary heat seal and secondary heat seal can be set separately, which is convenient for the later process. 5. The frame of this machine is of integral structure, which can change the strength loss of multi-piece assembling, effffectively improve the accuracy and durability, and greatly reduce the mechanical vibration. 6. The main reel seat of the machine adopts an integral tunneling structure to avoid the loss of accuracy and the deviation of concentricity caused by three-piece connection, and greatly improve the accuracy and stability after long-term use. 7. Use the horizontal way to avoid the undesirable phenomenon.
-
HS系列 Automatic winding machine
設備特點:
1.Using bilateral cleaning to improve capacitance performance,the production effiffifficiency of capacitor with diameter less than 50 mm can be increased by 25%.
2. This machine is controlled by Siemens PLC and touch screen. It has the functions of capacity calculation, parameter storage and parameter reading to realize humanized operation.
3. The whole machine is controlled by Panasonic AC servo system, and the winding tension is controlled by Japanese precision low friction cylinder, which can improve the accuracy and compensate the tension when the speed is lowered.
4. It has the function of secondary heat seal. The time and pressure of primary heat seal and secondary heat seal can be set separately, which is convenient for the later process.
5. Precision screw with material misalignment can effffectively reduce adjustment clearance, increase adjustable locking device, adjustable clearance and prevent misalignment displacement.
6. The frame of the machine is of integral structure, which can change the lack of strength of multiple assemblies, effffectively improve the accuracy and durability, and greatly reduce the mechanical vibration.
7. The main reel seat of the machine adopts an integral tunneling structure, which avoids the loss of accuracy and the deviation of concentricity caused by the three-piece connection, and greatly improves the accuracy and stability after long term use.
-
HM系列 Automatic winding machine
設備特點:
1. This machine is controlled by Siemens PLC and touch screen. It has the functions of capacity calculation, parameter storage and parameter reading to realize humanized operation.
2. The whole machine is controlled by Panasonic AC servo system, and the winding tension is controlled by Japanese precision low friction cylinder, which can improve the precision and compensate the tension when the speed is lowered.
3. It has the function of secondary heat seal. The time and pressure of primary heat seal and secondary heat seal can be set separately, which is convenient for the later process.
4. Precision screw rod is used to effffectively reduce the adjustment clearance, increase adjustable locking device, adjustable clearance and prevent the displacement of staggered edges.
5. The frame of the machine is of integral structure, which can effffectively improve the accuracy and durability and greatly reduce the mechanical vibration by changing the lack of strength in multi-piece assembly.
6. The main reel seat of the machine adopts an integral tunneling structure, which avoids the loss of precision and the deviation of concentricity caused by multi-chip connection, accuracy and stability after long term use.
-
H系列 Automatic winding machine
設備特點:
reading to realize humanized operation. 2. The whole machine is controlled by Panasonic AC servo system, and the winding tension is controlled by Japanese precision low friction cylinder, which can improve the precision and compensate the tension when the speed is lowered. 3. It has the function of secondary heat seal. The time and pressure of primary heat seal and secondary heat seal can be set separately, which is convenient for the later process. 4. The frame of the machine is of integral structure, which can effffectively improve the accuracy and durability and greatly reduce the mechanical vibration by changing the lack of strength of multi-piece assembly. 5. The main reel seat of the machine adopts an integral tunneling structure, which avoids the loss of precision and the deviation of concentricity caused by multi-chip connection, and greatly improves the accuracy and stability after long-term use.
-

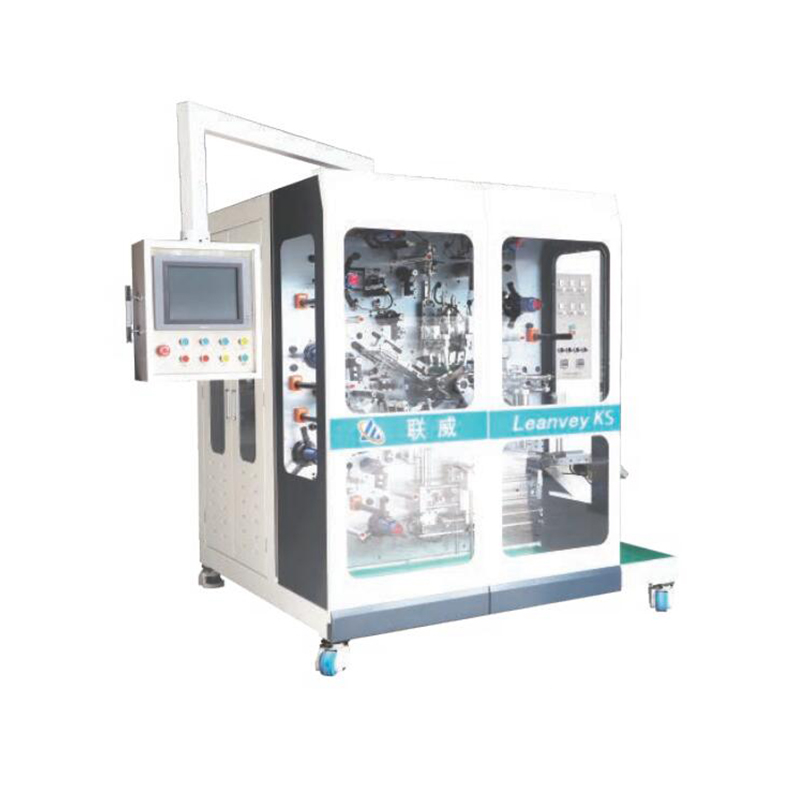

KS系列 Automatic winding machine
設備特點:
0、可選膜料自動錯邊位置預調整及精度保持功能。 1. With bilateral cleaning, outer fifilm and inner light-sandwich fifilm protection, the winding effffect of large diameter core can be improved. The inner diameter of elements can reach 125 mm and the outer diameter can reach 168 mm. 2. It has the function of automatic tightening and automatic pre-pressing of key-type fifilm material. 3. It has the function of automatic elimination and classifification of the fifirst defective products. 4. This machine adopts PLC + touch screen control, with capacity, tension, pressure calculation, storage and reading functions. 5. The pressure of the main wheel is controlled by pneumatic double pressure wheel; the pressure of the wheel is adjustable; and the pressure is controlled by electric proportional valve. 6. The whole machine is controlled by Panasonic AC servo system, and the winding tension is controlled by Japanese precision low friction cylinder, which can improve the accuracy and compensate the tension when the speed is lowered. 7. Metallized fifilm material axis unwinding has translation follow-up flflattening roller mechanism to effffectively prevent fifilm material wrinkling; material tray movement adopts double-column guidance to improve the movement accuracy. 8. It has the function of I/O signal status display of PLC; fault alarm has visual display of fault guidance solution. 9. It has the function of secondary heat seal. The time and pressure of primary heat seal and secondary heat seal can be set separately, which is convenient for the later process. 10. Pre-adjustment of automatic stagger position and accuracy maintenance funciton of optional film mateerial.
-

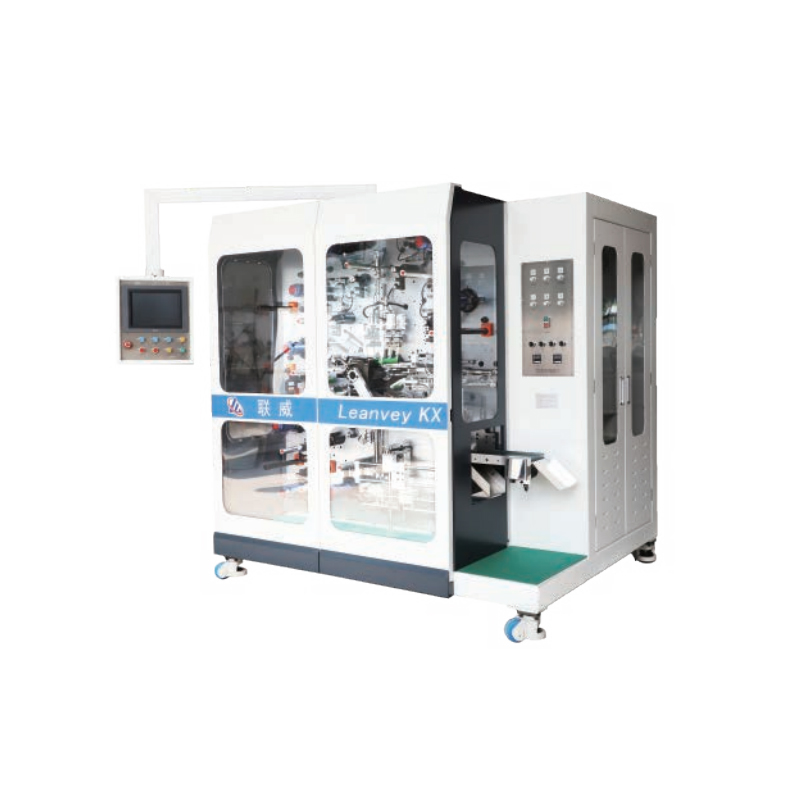

KX168D系列 Automatic winding machine
設備特點:
1. It has the function of dislocation and cutting offff of metal fifilm, protection of inner supporting light fifilm, and can avoid cleaning of metal fifilm, avoid scalding dust and save metal fifilm. The maximum diameter can reach 112 mm.
2. Bilateral insertion of material reel can effffectively prevent fifilm phenomenon during core-offff.
3. It has the function of automatic tightening and automatic pre-pressing of key-type fifilm material.
4. It has the function of automatic elimination and classifification of the fifirst defective products.
5. This machine adopts PLC + touch screen control, with capacity, tension, pressure calculation, storage and reading functions.
6. The pressure of the main wheel is controlled by pneumatic double pressure wheel; the pressure of the wheel is adjustable; and the pressure is controlled by electric proportional valve.
7. The whole machine is controlled by Panasonic AC servo system, and the winding tension is controlled by Japanese precision low friction cylinder, which can improve the accuracy and compensate the tension when the speed is lowered.
8. There is a follow-up flflattening roll mechanism for the unwinding of metallized fifilm material shafts to effffectively prevent the wrinkling of fifilm material; the movement of material tray is guided by two columns to improve the accuracy of movement.
9. The speed of inner and outer package, outer seal and inner seal can be adjusted.
10. It has the function of I/O signal status display of PLC; fault alarm has visual display of fault guidance solution.
11. It has the function of secondary heat seal. The time and pressure of primary heat seal and secondary heat seal can be set separately, which is convenient for the later process.
12. Pre-adjustment of automatic stagger position and accuracy maintenance funciton of optional film mateial.
-

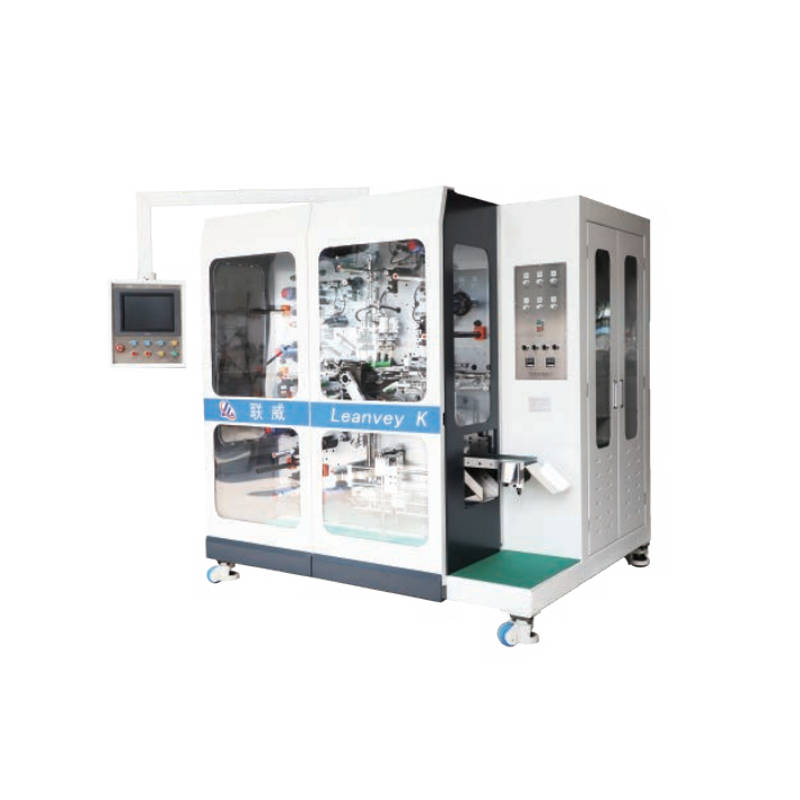

K系列 Automatic winding machine
設備特點:
1.function of metal fifilm dislocation and cutting offff, the protection of inner supporting light fifilm, the optional cleaning of metal fifilm, the avoidance of dust, the saving of metal fifilm and the improvement of product performance.
2. The material reel is inserted on the same side of the same conduit, which effffectively improves the coaxiality of the two semi-axes and the winding accuracy.
3. It has the function of automatic tightening and automatic pre-pressing of key-type fifilm material.
4. It has the function of automatic elimination and classifification of the fifirst defective products.
5. This machine adopts PLC + touch screen control, with capacity, tension, pressure calculation, storage and reading functions.
6. The pressure of the main wheel is controlled by pneumatic double pressure wheel; the pressure of the wheel is adjustable; and the pressure is controlled by electric proportional valve.
7. The whole machine is controlled by Panasonic AC servo system, and the winding tension is controlled by Japanese precision low friction cylinder, which can improve the accuracy and compensate the tension when the speed is lowered.
8. Metallized fifilm material axis unwinding has translation follow-up flflattening roller mechanism to effffectively prevent fifilm material wrinkling; material tray movement adopts double-column guidance to improve movement accuracy.
9. The speed of inner and outer package, outer seal and inner seal can be adjusted.
10. It has the function of secondary heat seal. The time and pressure of primary heat seal and secondary heat seal can be set separately, which is convenient for the later process.
11. It has the function of displaying the I/O signal status of the PLC; the fault alarm has the visual display of the fault guidance solution.
12. Pre-adjustment of automatic stagger position and accuracy maintenace funciton of optional film mateial.
-

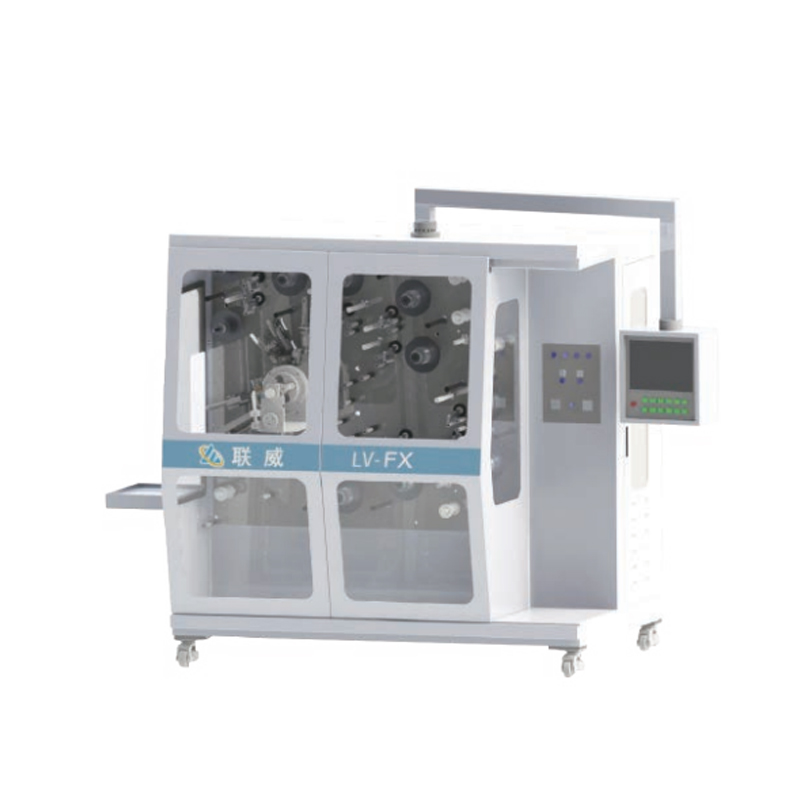

FX系列 Automatic winding machine
設備特點:
1. With the function of outsourcing and insertion, it can effffectively solve the appearance problems of safety fifilm, high square resistance, ultra-thin fifilm and other capacitors, save metal fifilm and improve product performance.
2. Double-drive winding structure maximizes production effiffifficiency.
3. It has the function of automatic tightening of key-type diaphragm disc to improve operation effiffifficiency and convenience.
4. The machine adopts AC servo and pneumatic tension control to improve product accuracy.
5. PLC and touch screen control, with capacity calculation, parameter storage, data reading function, to achieve intelligent operation.
6. Integral rack and main winding mechanism can improve seismic resistance and ensure the durability of accuracy. 7. Translational staggered edge adjusting mechanism ensures the accuracy of the tray after moving, and the operation is convenient.
8. It has the function of automatic wiring and directional pre-flflattening. The maximum mandrels can reach 70 mm. It is suitable for ultra-thingcapacitor production.
-

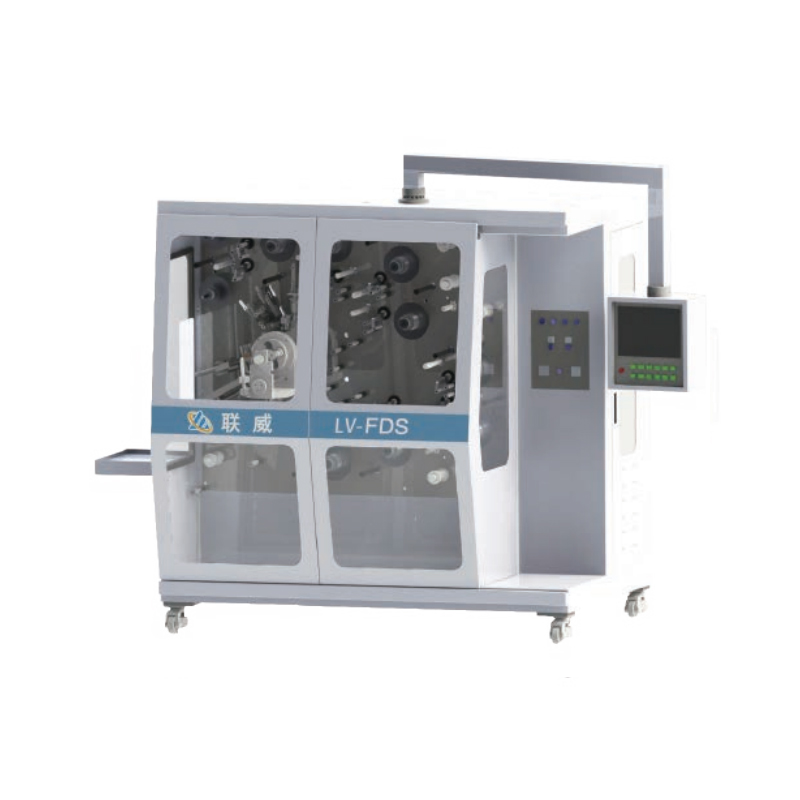

FDS系列 Automatic winding machine
設備特點:
1. Double-sided removal of metal layer with double-sided metallization fifilm. 2. Outsourcing and inserting function can effffectively solve the appearance problems of safety fifilm, high square resistance and ultra-thin fifilm capacitors, and improve product performance. 3. Double-drive winding structure works synchronously to maximize production effiffifficiency. 4. It has the function of automatic tightening of key-type diaphragm disc to improve operation effiffifficiency and convenience. 5. The machine adopts AC servo and pneumatic tension control to improve product accuracy. 6. PLC and touch screen control, with capacity calculation, parameter storage, data reading function, to achieve intelligent operation. 7. Integral rack and main winding mechanism can improve seismic resistance and ensure the durability of accuracy. 8. Translational staggered edge adjusting mechanism ensures the accuracy of the tray after moving, and the operation is convenient. 9. It has the function of automatic wiring and directional pre-flflattening.
-
FS系列 Automatic winding machine
設備特點:
1. With the function of outsourcing and insertion, it can effffectively solve the appearance problems of safety fifilm cap, high square resistance cap, ultra-thin fifilm capacitors, save metal fifilm and improve product performance.
2. Double-drive winding structure works synchronously to maximize production effiffifficiency.
3. It has the function of automatic tightening of key-type diaphragm disc to improve operation effiffifficiency and convenience.
4. The machine adopts AC servo and pneumatic tension control to improve product accuracy.
5. PLC and touch screen control, with capacity calculation, parameter storage, data reading function, to achieve intelligent operation.
6. Integral rack and main winding mechanism can improve seismic resistance and ensure the durability of accuracy.
7. Translational staggered edge adjusting mechanism ensures the accuracy of the tray after moving, and the operation is convenient.
8. With automatic core connection and directional pre-flflattening function, the maximum reel can reach 20mm. It is also suitable for producing round and thin capacitors. 13 1
-
F系列 Automatic winding machine
設備特點:
1. With the function of outsourcing and insertion, it can effffectively solve the appearance problems of safety fifilm, high square resistance, ultra-thin fifilm and other capacitors, save metal fifilm and improve product performance.
2. Dual-drive structure works synchronously to maximize production effiffifficiency.
3. This machine adopts Siemens enhanced Smart PLC and touch screen control, with capacity calculation, parameter storage, data reading functions, to achieve intelligent operation.
4. Integral rack and main winding mechanism can improve seismic resistance and ensure the durability of accuracy.
5. Translational staggered edge adjusting mechanism ensures the accuracy of the tray after moving, and the operation is convenient.
6. It has the function of directional pre-flflattening with core. The maximum reel can reach 20mm. It is suitable for producing circular and thin capacitors.
7. It has the function of automatic core connection and directional pre-flflattening of core.
8. Servo control, pneumatic tension control and automatic tighening mechanism of one-button diaphragam disc are opional.
-
EDFS系列 Automatic winding machine
設備特點:
1. Double-sided removal of metal layer with double-sided metallization fifilm.
2. With the function of outsourcing and insertion, it can effffectively solve the capacitance appearance problems such as safety fifilm, high square resistance, super-thin fifilm, save metal fifilm and improve product performance.
3. Synchronized winding of double-drive gear transmission structure maximizes production effiffifficiency and ensures the stability of transmission accuracy.
4. This machine adopts Siemens enhanced Smart PLC and touch screen control, with capacity calculation, parameter storage, data reading functions, to achieve intelligent operation.
5. Internal and external washing can adjust, shorten the length, save materials and improve effiffifficiency.
6. Air guide mechanism can be added according to product requirements to effffectively prevent material deviation and improve quality.
7. The machine can choose to add explosion-proof fifilm cleaning mechanism according to product requirements.
8. Integral rack and main winding mechanism can improve the seismic resistance and ensure the accuracy and durability of the equipment.
9. Translational staggered side adjusting mechanism ensures the accuracy of the tray after moving and is convenient to operate. 10. The machine can be equipped with a key-type diaphragm disc automatic tightening mechanism, automatic core connection and core directional pre-pressing mechanism,and safety door.
-
EDF系列 Automatic winding machine
設備特點:
1. Double-sided removal of metal layer with double-sided metallization fifilm.
2. With the function of outsourcing and insertion, it can effffectively solve the capacitance appearance problems such as safety fifilm, high square resistance, super-thin fifilm, save metal fifilm and improve product performance.
3. This machine adopts Siemens enhanced Smart PLC and touch screen control, with capacity calculation, parameter storage, data reading functions, to achieve intelligent operation.
4. The internal and external washing can be adjusted to shorten the length, save materials and improve effiffifficiency.
5. Air guide mechanism can be added according to product requirements to effffectively prevent material deviation and improve quality.
6. The machine can choose to add explosion-proof fifilm cleaning mechanism according to product requirements.
7. Integral rack and main winding mechanism can improve the seismic resistance and ensure the accuracy and durability of the equipment.
8. Translational staggered edge adjusting mechanism ensures the accuracy of the tray after moving, and the operation is convenient.
9. Integrative internal and external seal assembly structure, stable movement, convenient operation; accessories and traditional
-
EFS系列 Automatic winding machine
設備特點:
1. It has outer fifilm wropping structure,it can effffectively solve the appearance problems of safety fifilm, high square resistance, ultra-thin fifilm and other capacitors, save metal fifilm and improve product performance. 2. Double-drive gear transmission structure is winded synchronously to maximize production effiffifficiency and ensure the stability of transmission accuracy.
3. This machine adopts Siemens enhanced Smart PLC and touch screen control, with capacity calculation, parameter storage, data reading functions, to achieve intelligent operation.
4. Internal and external washing can adjust, shorten the length, save materials and improve effiffifficiency.
5. Air guide mechanism can be added according to product requirements to effffectively prevent material deviation and improve quality.
6. The machine can add specifific burn-offff structure for winding safety metal capacitiors.
7. Integral rack and main winding mechanism can improve the seismic resistance and ensure the accuracy and durability of the equipment.
8. Translational staggered edge adjusting mechanism ensures the accuracy of the tray after moving, and the operation is convenient.
9. The machine can choose one-key pneumatic fifilm-loading mechanism, which is convenient to operate and improves effiffifficiency.
10. Automatically coring and directional pre-flflattening of cores are optional.
-
EF系列 Automatic winding machine
設備特點:
1. It has outer fifilm wrapping structure, it can effffectively solve the appearance problems of safety fifilm, high square resistance, ultra-thin fifilm and other capacitors, save metal fifilm and improve product performance.
2. Internal and external washing can adjust, shorten the length, save materials and improve effiffifficiency.
3. Air guide mechanism can be added according to product requirements to effffectively prevent material deviation and improve quality.
4. The machine can choose to add explosion-proof fifilm cleaning mechanism according to product requirements.
5. Integral frame improves strength and seismic resistance, chassis can put materials, while ensuring the accuracy and durability of equipment.
6. Integral main winding mechanism, 5 positioning pins of body base are installed on horizontal base plate in the same position, which ensures the coaxiality of the winding shaft when winding, improves product accuracy and reduces noise.
7. Translational material stagger adjusting mechanism ensures the vertical accuracy of the tray after moving, and the tray inside and outside can move arbitrarily, so the operation is convenient and convenient.
8. Integrative internal and external sealing and insertion assembly structure, stable movement, convenient operation; accessories and traditional machine interchangeable, easy to maintain and greatly reduce costs.
-
E系列 Automatic winding machine
設備特點:
1. This machine adopts Siemens enhanced Smart PLC and touch screen control, with capacity calculation, parameter storage, data reading functions, to achieve intelligent operation.
2. Internal and external washing can adjust, shorten the length, save materials and improve effiffifficiency.
3. Air guide mechanism can be added according to product requirements to effffectively prevent material deviation and improve quality.
4. The machine can choose to add explosion-proof fifilm cleaning mechanism according to product requirements.
5. Integral frame improves strength and seismic resistance, chassis can put materials, while ensuring the accuracy and durability of equipment.
6. Integral main winding mechanism, 5 positioning pins of body base are installed on horizontal base plate in the same position, which ensures the coaxiality of the winding shaft when winding, improves product accuracy and reduces noise.
7. Translational material stagger adjusting mechanism ensures the vertical accuracy of the tray after moving, and the tray inside and outside ca
- Non-standard automation parts customization For non-standard automation equipment use and manufacturers to provide one-stop customization of automation parts, we develop a strict quality control system and information management, select a person to connect, professional team development, great
- Customized complete sets of automation equipment Our products serve a variety of industries and manufacturers, military, medical, high-speed rail, automotive, photovoltaic, electrical electronics, etc. Especially in the film capacitor automatic production equipment industry we have accumulated rich
